Nkọwa ngwaahịa
Laser rangefinder bụ ngwaọrụ a na-eji atụta anya n'ebe ihe a tụrụ anya site n'ịchọpụta mgbama nloghachi nke laser a na-ebupụ, si otú a na-achọpụta ozi anya dị anya. Usoro teknụzụ a tozuru oke, nwere arụmọrụ kwụsiri ike, nwee ike tụọ ebumnuche dị iche iche static na ike, yana enwere ike itinye ya na ngwaọrụ dị iche iche.

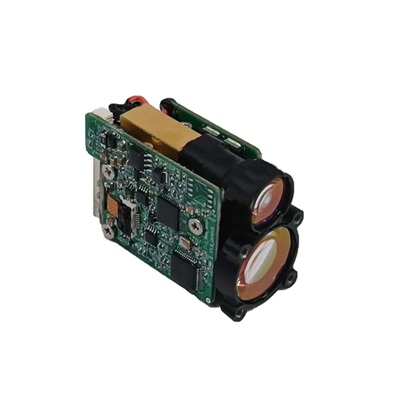

LumiSpot 1535nm F-usoro laser rangefinder bụ ụdị nkwalite na ahaziri nke mbụ 1535nm A-usoro, na-egosipụta nha pere mpe, ịdị arọ dị arọ (ELRF-C16 dị naanị 33g), izizi dị elu, nkwụsi ike siri ike, yana ndakọrịta na ọtụtụ nyiwe. Ọrụ ndị dị mkpa gụnyere ịgba ọsọ otu usu na usoro na-aga n'ihu, nhọrọ dị anya, ngosipụta ebumnuche ihu na azụ, ọrụ nyocha onwe onye, yana usoro ịgba ọsọ na-aga n'ihu site na 1 ruo 10Hz. Usoro a na-enye ngwaahịa dị iche iche iji gboo ihe dị iche iche chọrọ (site na 3km ruo 15km) ma nwee ike iji ya dị ka akụkụ nke usoro nyocha eletrọnịkị na nyiwe dị iche iche dị ka ụgbọ ala ala, obere ngwaọrụ dị arọ, ikuku, ụgbọ mmiri, na ngwa nyocha oghere.
Teknụzụ Lumispot na-anya isi usoro nrụpụta zuru oke, site na ịgbanye mgbawa ziri ezi na mgbanwe ntụgharị ọkụ na-akpaghị aka na nnwale dị elu na nke dị ala, yana nyocha ngwaahịa ikpeazụ, na-ahụ na ịdị mma ngwaahịa. Anyị nwere ike ịnye ngwọta ụlọ ọrụ maka ndị ahịa nwere mkpa dị iche iche, enwere ike ibudata data kpọmkwem n'okpuru. Maka ozi ngwaahịa ma ọ bụ arịrịọ omenala, biko nweere onwe gị ịkpọtụrụ anyị.

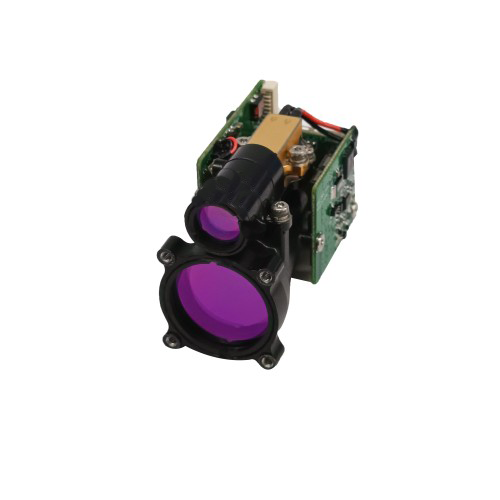

ELRF-C16 laser range finder modul bụ laser range finder modul mepụtara dabere na 1535nm erbium laser nke na-emepụta onwe ya site na Lumispot ọ na-anabata otu pulse TOF nke usoro ma nwee oke nha nha nke> 3km. Ọ mejupụtara laser, na-ebufe ngwa anya sistemụ na-enweta sistemu ngwa anya na bọọdụ njikwa njikwa, ma na-ekwurịta okwu na ngwanrọ onye ọbịa na ọdụ ụgbọ mmiri nke TTL2. protocol, nke dị mma maka ndị ọrụ ịzụlite oge nke abụọ. lt nwere njiri mara nke obere nha, arụmọrụ kwụsiri ike dị ọkụ, nguzogide mmetụta dị elu, nchekwa anya nke mbụ, wdg, enwere ike itinye ya n'ọrụ ejiri aka, etinyere ụgbọ ala, pọd na akụrụngwa fotoelectric ndị ọzọ.

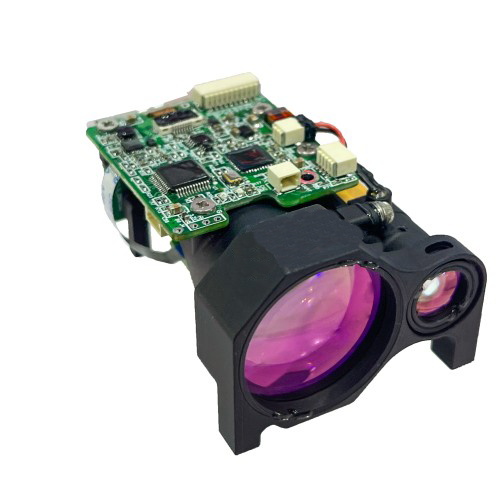

Modul ELRF-E16 laser rangefinder modul bụ modul laser nke emepụtara dabere na ụlọ ọrụ anyị nyochara onwe ya wee mepụta laser 1535nm erbium, Ọ na-anabata usoro oge ụgbọ elu otu-pulse (TOF) nke nwere oke ogologo nke ≥5km. Ihe mejupụtara laser, na-ebufe sistemu ngwa anya, na-anata sistemu ngwa anya, yana bọọdụ sekit na-achịkwa, ọ na-agwa kọmputa onye ọbịa okwu site na ọdụ ụgbọ mmiri TTL. Ọ na-enye ngwanrọ nnwale kọmputa na usoro nkwukọrịta, na-eme ka mmepe nke abụọ nke onye ọrụ. Ọ na-anya isi atụmatụ dị ka obere size.light arọ, kwụsiri ike ịrụ ọrụ, elu ujo na-eguzogide, na Class 1 anya nchekwa.

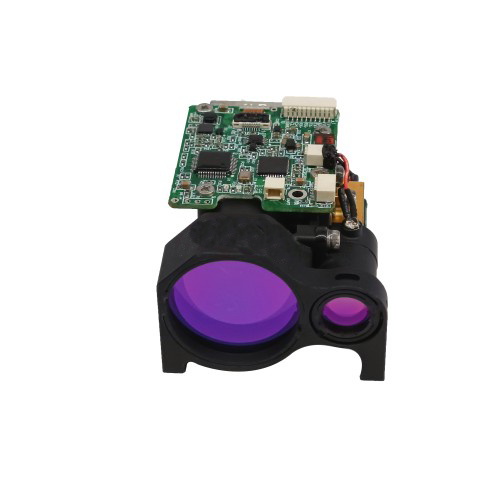

Modul ELRF-F21 laser rangefinder modul bụ modul laser nke emepụtara dabere na ụlọ ọrụ anyị nyochara onwe ya wee mepụta laser 1535nm Erbium. lt na-anakwere usoro ịgba ọsọ n'otu ntabi anya nke oge ụgbọ elu (TOF) nwere oke dị anya nke ≥6km. Ihe mejupụtara laser, na-ebufe sistemu ngwa anya, na-anata sistemụ anya, yana bọọdụ sekit na-achịkwa, ọ na-agwa kọmpụta onye ọbịa okwu site na ọdụ ụgbọ mmiri RS422. Ọ na-enye ngwanrọ nnwale kọmputa na usoro nkwukọrịta, na-eme ka mmepe nke abụọ nke onye ọrụ. Ọ na-anya isi atụmatụ dị ka obere nha, ịdị arọ dị mfe, arụmọrụ kwụsiri ike, nkwụsi ike dị elu, yana nchekwa anya klaasị 1.
A na-emepụta modul laser rangefinder ELRF-G25 dabere na 1535nmerbiumlaser nke anyị mere onwe ya. Ọ na-anakwere otu usoro TOF (Oge-of-Flight), nke nwere oke nha nke> 8km. Modul ahụ nwere laser, sistemu ngwa anya nnyefe, ịnata sistemu anya, na bọọdụ sekit njikwa. Ọ na-ekwurịta okwu na kọmputa onye ọbịa site na ọdụ ụgbọ mmiri RS422 ma na-enye ngwanrọ nnwale na usoro nkwukọrịta maka mmepe nke abụọ dị mfe site n'aka ndị ọrụ. Themodule nwere obere nha, ịdị arọ dị mfe, arụmọrụ kwụsiri ike, nguzogide dị elu, yana klaasị 1 nwere nchekwa.
Emepụtara modul laser rangefinder ELRF-H25 dabere na laser 1535nm erbium nke anyị mere onwe ya. Ọ na-anabata usoro ịgba ọsọ TOF (Oge nke ụgbọ elu), yana oke nha nha> 10km. Modul ahụ nwere laser, sistemu ngwa anya nnyefe, ịnata sistemu anya, na bọọdụ sekit njikwa. Ọ na-ekwurịta okwu na kọmputa onye ọbịa site na ọdụ ụgbọ mmiri RS422 ma na-enye ngwanrọ nnwale na usoro nkwukọrịta maka mmepe nke abụọ dị mfe site n'aka ndị ọrụ. Modul ahụ nwere obere nha, ịdị arọ dị arọ, arụmọrụ kwụsiri ike, nguzogide mmetụta dị elu, yana klaasị 1 anya-echekwa. Enwere ike itinye ya n'ime ụgbọ ala ejiri aka rụọ, yana akụrụngwa eletrọnịkị nke dabere na pọd.

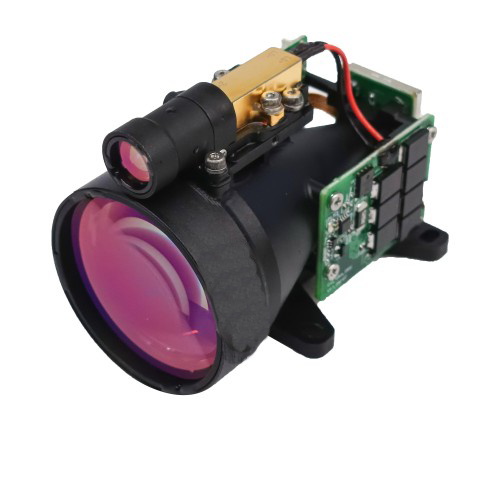

Emepụtara ELRF-J40 laser range finder modul dabere na laser iko 1535nmerbium nke Lumispot mepụtara n'onwe ya. Ọ na-anabata otu pulse TOF ụdị dị iche iche ma nwee oke nha nke> 15km. Ọ mejupụtara laser, na-ebufe ngwa anya usoro, na-anata ngwa anya usoro na akara sekit osisi, na-ekwurịta okwu na onye ọbịa kọmputa site na RS422 serial ọdụ ụgbọ mmiri, na-enye nnabata kọmputa ule software na nkwurịta okwu protocol, nke dị mma maka onye ọrụ nke abụọ mmepe. lt nwere njirimara nke obere nha, ịdị arọ dị arọ, arụmọrụ kwụsiri ike, nguzogide mmetụta dị elu, nchekwa anya nke mbụ, wdg.
Emepụtara ELRF-O52 laser range finder modul dabere na laser iko 1535nmerbium nke Lumispot mepụtara n'onwe ya. Ọ na-anabata otu pulse TOF ụdị dị iche iche ma nwee oke nha nke> 15km. Ọ mejupụtara laser, na-ebufe ngwa anya usoro, na-anata ngwa anya usoro na akara sekit osisi, na-ekwurịta okwu na onye ọbịa kọmputa site na RS422 serial ọdụ ụgbọ mmiri, na-enye nnabata kọmputa ule software na nkwurịta okwu protocol, nke dị mma maka onye ọrụ nke abụọ mmepe. lt nwere njirimara nke obere nha, ịdị arọ dị arọ, arụmọrụ kwụsiri ike, nguzogide mmetụta dị elu, nchekwa anya nke mbụ, wdg.
Nkọwapụta
| Ihe | Oke | ||||||
| Ngwaahịa | ELRF-C16 | ELRF-E16 | ELRF-F21 | ELRF-G25 | ELRF-H25 | ELRF-J40 | ELRF-O52 |
| Ọkwa nchekwa anya | Klas 1 | Klas 1 | Klas 1 | Klas 1 | Klas 1 | Klas 1 | Klas 1 |
| Ogologo ogologo | 1535nm± 5nm | 1535nm± 5nm | 1535nm± 5nm | 1535nm± 5nm | 1535nm± 5nm | 1535nm± 5nm | 1535nm± 5nm |
| Igwe divergence Laser | ≤0.6mrad | ≤0.3mrad | ≤0.3mrad | ≤0.3mrad | ≤0.3mrad | ≤0.3mrad | ≤0.3mrad |
| Ugboro ọnụọgụ na-aga n'ihu | 1 ~ 10Hz (nwere ike idozi) | 1 ~ 10Hz (nwere ike idozi) | 1 ~ 10Hz (nwere ike idozi) | 1 ~ 10Hz (nwere ike idozi) | 1 ~ 10Hz (nwere ike idozi) | 1 ~ 10Hz (nwere ike idozi) | 1 ~ 10Hz (nwere ike idozi) |
| Ikike ime ụlọ (ụlọ) | ≥5km | ≥6km | ≥7km | ≥8km | ≥10km | ≥12km | ≥20KM |
| Ranging capacity（vehicles target@2.3m×2.3m） | ≥3.5km | ≥5km | ≥6km | ≥7km | ≥8km | ≥10km | ≥15km |
| Ranging capacity（personnel target@1.75m×0.5m） | ≥2km | ≥3km | ≥3km | ≥3km | ≥4km | ≥5km | ≥7km |
| Oke nha kacha nta | ≤15m | ≤15m | ≤30m | ≤30m | ≤30m | ≤50m | ≤100m |
| Izi ezi n'usoro | ≤±1m | ≤±1m | ≤±1m | ≤±1m | ≤±1m | ≤±1.5m | ≤±1.5m |
| izi ezi | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% |
| Mkpebi dị elu | ≤30m | ≤30m | ≤30m | ≤30m | ≤30m | ≤30m | ≤30m |
| voltaji ọkọnọ ike | DC 5V ~ 28V | DC 5V ~ 28V | DC 5V ~ 28V | DC 5V ~ 28V | DC 5V ~ 28V | DC 5V ~ 28V | DC 5V ~ 28V |
| Ibu | ≤33g±1g | ≤44g | ≤55g | ≤75g | ≤75g | ≤130g | ≤270g |
| Nkezi Ike | ≤0.8W (1 Hz) | ≤1w (1 Hz) | ≤3w | ≤3w | ≤3w | ≤6 w | ≤6 w |
| Oriri ike kacha elu | ≤3w | ≤3w | ≤7 w | ≤7 w | ≤7 w | ≤14 w | ≤14 w |
| Ike njikere | ≤0.2w | ≤0.2w | ≤0.2w | ≤0.2w | ≤0.2w | ≤0.2w | ≤0.2w |
| Nha | ≤48mm × 21mm × 31mm | ≤50mm × 23mm × 33.5mm | ≤65mm × 40mm × 28mm | ≤65mm × 46mm × 32mm | ≤65mm × 46mm × 32mm | ≤83mm × 61mm × 48mm | ≤104mm × 61mm × 74mm |
| Okpomọkụ arụ ọrụ | -40 ℃ ~ + 60 ℃ | -40 ℃ ~ + 60 ℃ | -40 ℃ ~ + 60 ℃ | -40 ℃ ~ + 60 ℃ | -40 ℃ ~ + 60 ℃ | -40 ℃ ~ + 60 ℃ | -40 ℃ ~ + 60 ℃ |
| Ọnọdụ nchekwa | -55 ℃ ~ + 70 ℃ | -55 ℃ ~ + 70 ℃ | -55 ℃ ~ + 70 ℃ | -55 ℃ ~ + 70 ℃ | -55 ℃ ~ + 70 ℃ | -55 ℃ ~ + 70 ℃ | -55 ℃ ~ + 70 ℃ |
| Budata |  Akwụkwọ data | Akwụkwọ data | Akwụkwọ data | Akwụkwọ data | Akwụkwọ data | Akwụkwọ data | Akwụkwọ data |
