LST-LRE-19138
Njirimara ngwaahịa
1570nm rangefinders modul sitere na Lumispot Tech na-adabere na laser 1570nm OPO nke mepụtara onwe ya nke ọma, yana njirimara nke ọnụ ahịa na-agbanwe agbanwe na nyiwe dị iche iche. Ọrụ ndị bụ isi gụnyere: otu-pulse rangefinder, rangefinder na-aga n'ihu, nhọrọ anya, ngosipụta ihu na azụ, yana ọrụ nyocha onwe ya.
Nkọwapụta
| Ngwa anya | Oke | Okwu |
| Ogologo ogologo | 1570nm+10nm | |
| Ọdịiche n'akuku beam | 1.2 + 0.2mrad | |
| Oke ọrụ A | 300m ~ 37km* | Nnukwu ebumnuche |
| Oke ọrụ B | 300m~19km* | Ebumnuche ebumnuche: 2.3x2.3m |
| Oke ọrụ C | 300m ~ 10km* | Ebumnuche ebumnuche: 0.1m² |
| Ndezi ụda | ±5m | |
| Ugboro ugboro | 1 ~ 10Hz | |
| Ọkụ ọkụ | DC18-32V | |
| Ọnọdụ okpomọkụ na-arụ ọrụ | -40 ℃ ~ 60 ℃ | |
| Ọnọdụ nchekwa | -50 ℃ ~ 70 ℃ | |
| Nkwurịta okwu interface | RS422 | |

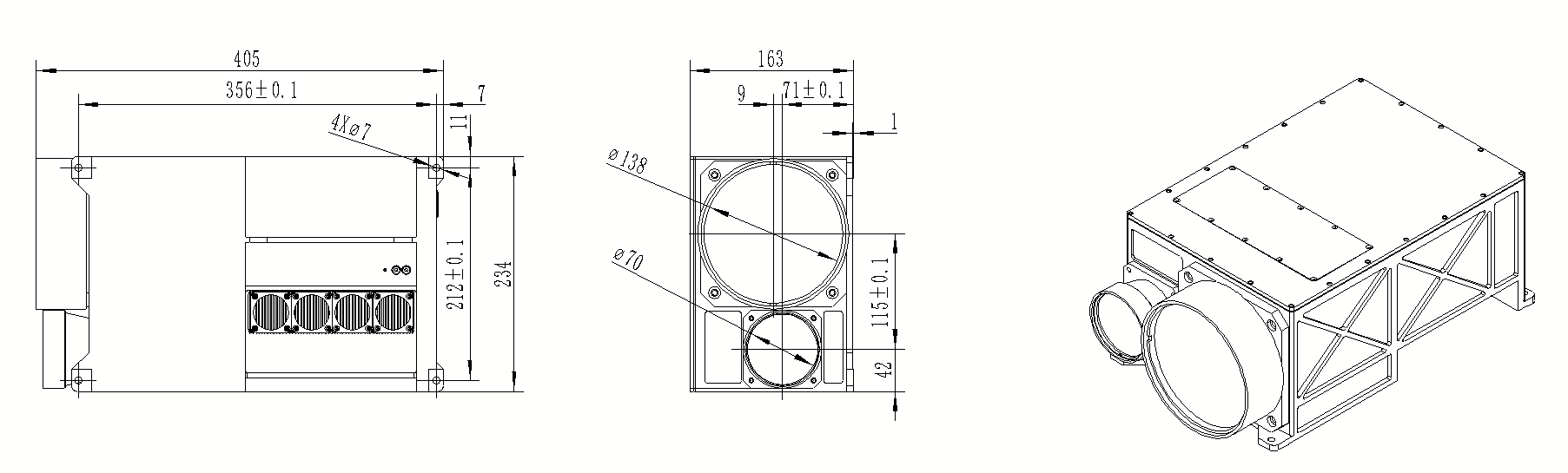

| Akụkụ | 405mmx234mmx163mm | |
| Oge ndụ | ≥1000000 ugboro |
Mara: * Visibility ≥25km, 0.2 lekwasịrị anya reflectivity, divergence Angle 0.6mrad
Nkọwa ngwaahịa
